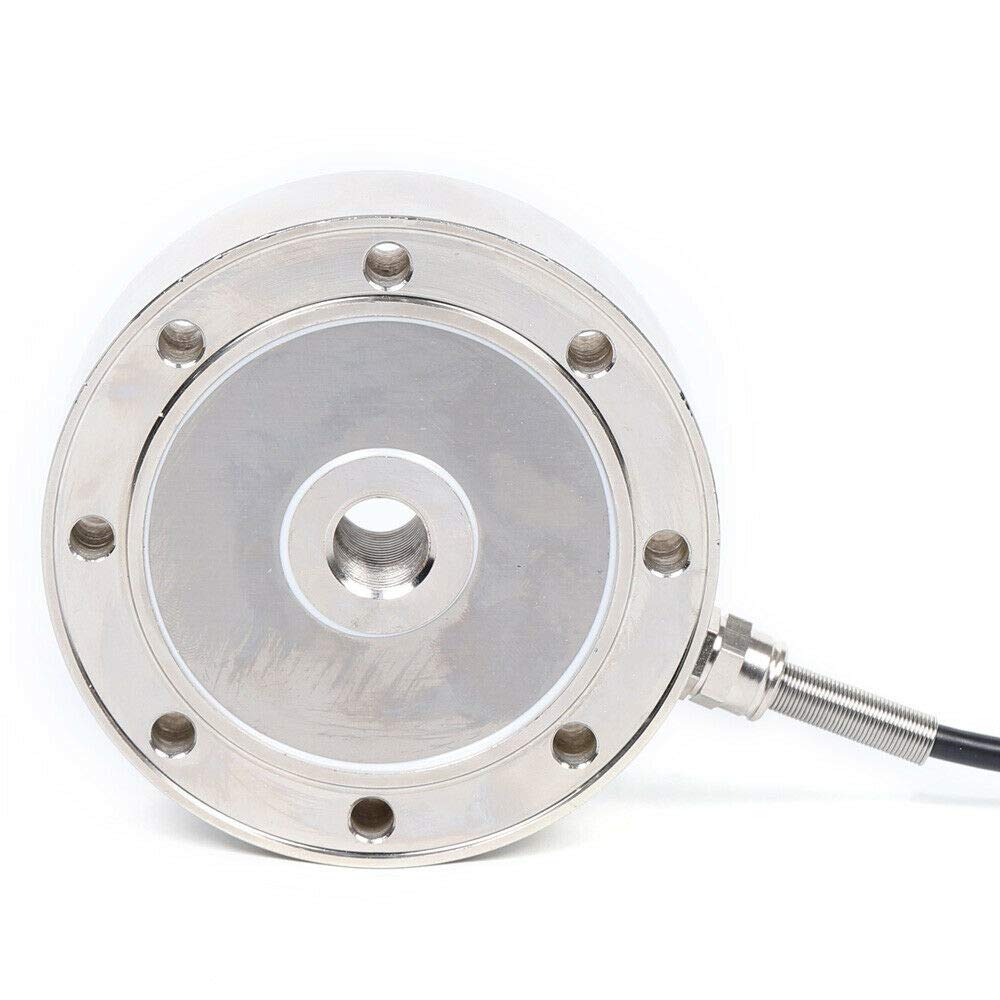

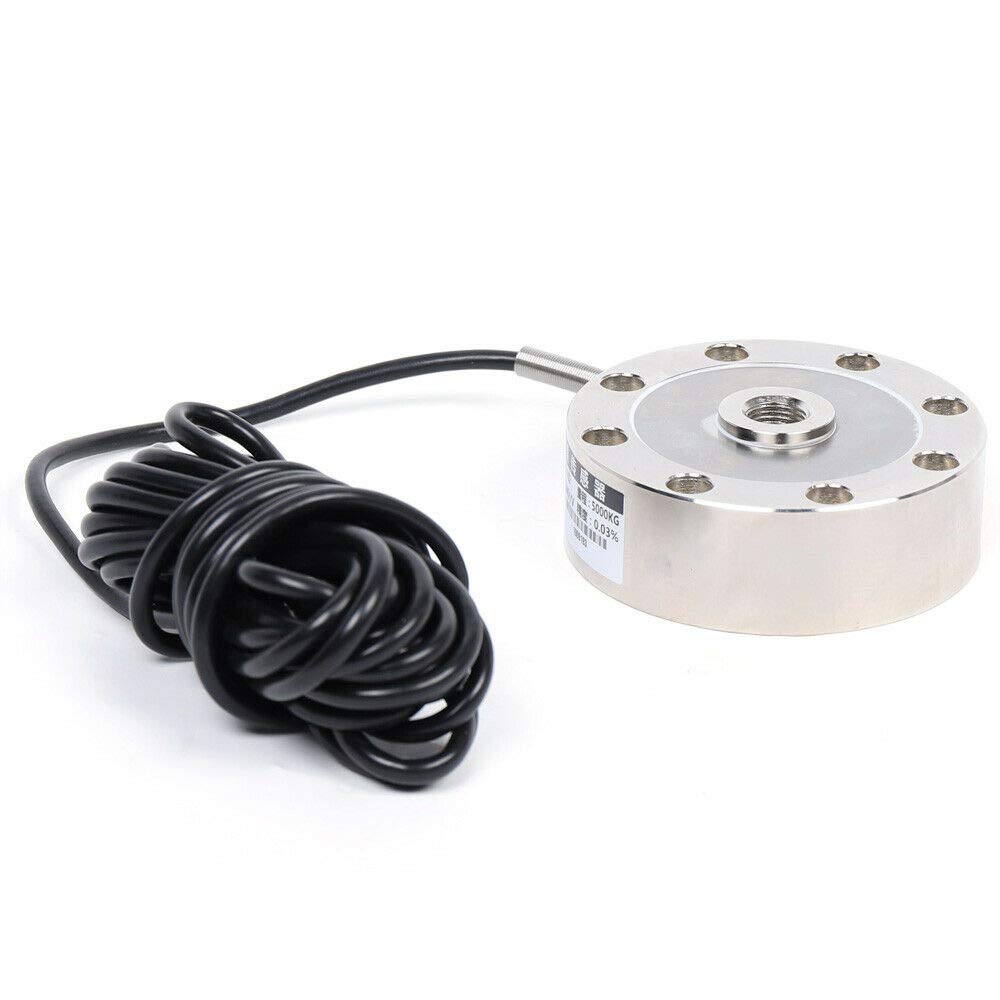

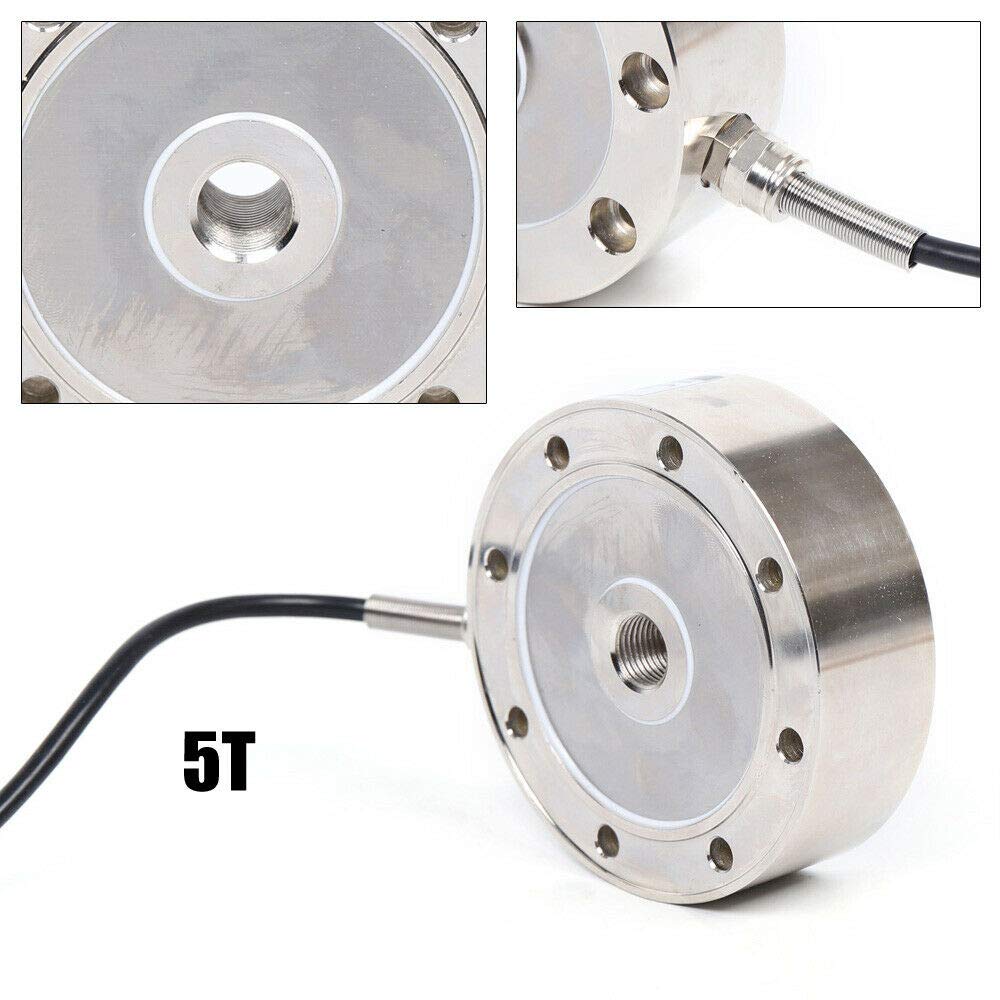

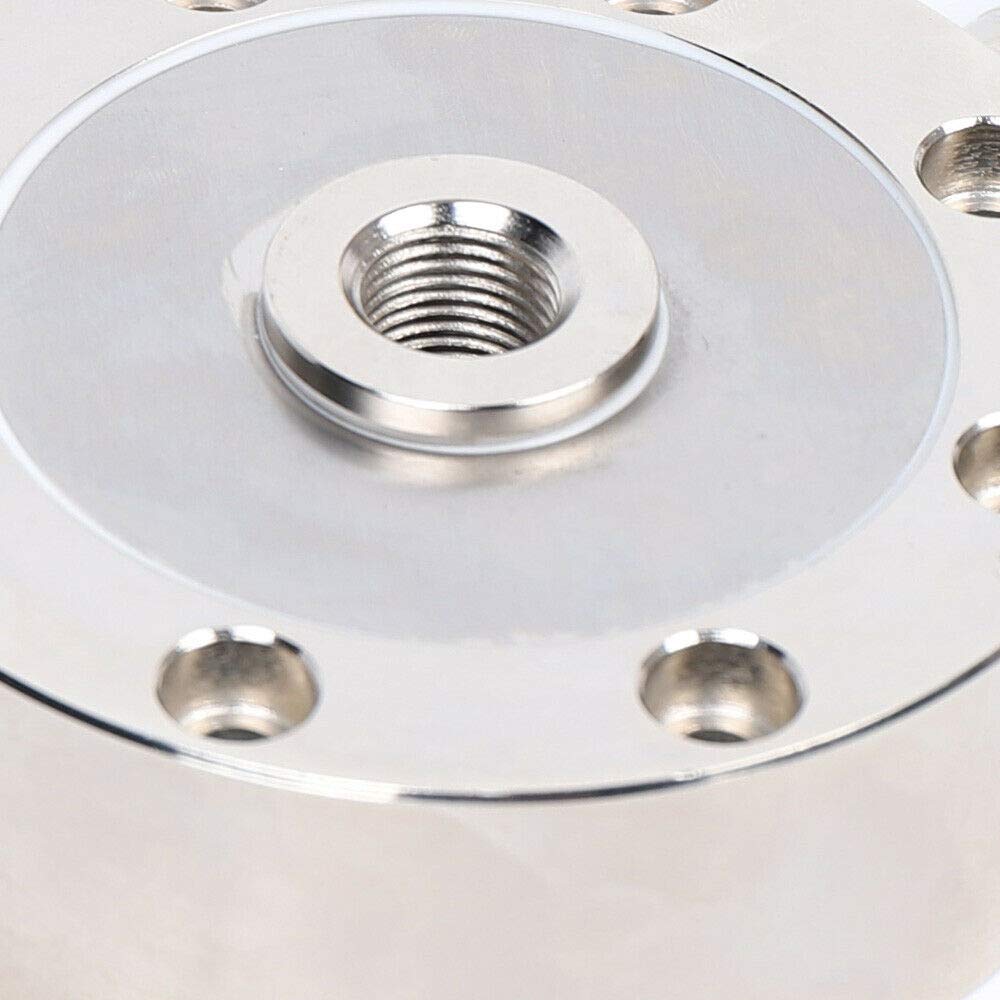

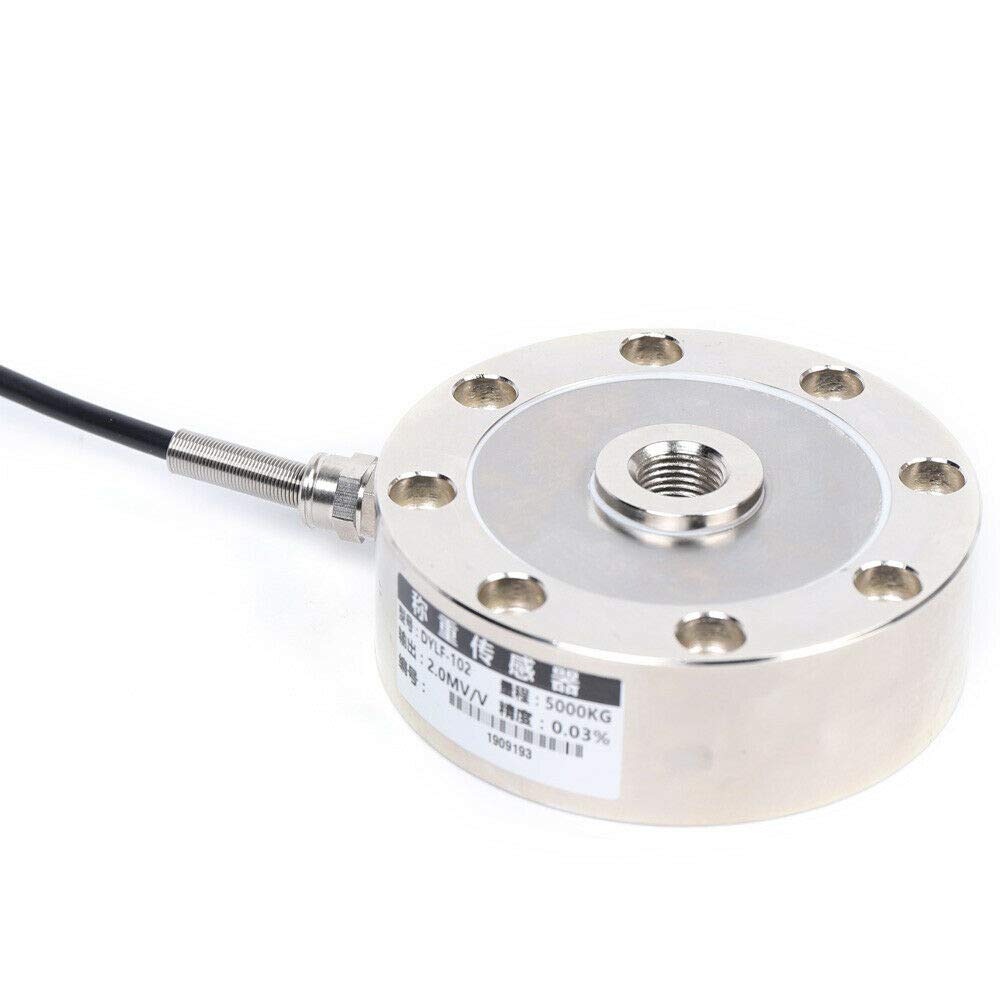

Low Profile Disk Load Cell Sensor for Electronic Weighing Devices D92620
Sale price
$14.95
Regular price $67.86
Skip to product information
Wide Use: A new 5T pressure sensor, which is suitable for the measurement of force in the industrial system and the industrial automatic measurement and control system of various weighing and measuring forces, such as track scale, hopper scale, etc.
Features: Anti bias load, high precision. Strong mechanical fatigue resistance.
Material: 40 Cr alloy steel. Corrosion resistance
Repeatability: ± 0.03%F·S. Good stability
Package Included: 1× Weighting Sensor
Industrial & Scientific Test, Measure & Inspect Pressure & Vacuum
Low Profile Disk Load Cell Sensor for Electronic Weighing Devices D92620
Sale price
$14.95
Regular price $67.86
Shipping calculated at checkout.
Wide Use: A new 5T pressure sensor, which is suitable for the measurement of force in the industrial system and the industrial automatic measurement and control system of various weighing and measuring forces, such as track scale, hopper scale, etc.
Features: Anti bias load, high precision. Strong mechanical fatigue resistance.
Material: 40 Cr alloy steel. Corrosion resistance
Repeatability: ± 0.03%F·S. Good stability
Package Included: 1× Weighting Sensor
Specification:
Color: Silver
Sensitivity: 2.0 ± 0.02mv/v
Nonlinear: ± 0.03%F·S
Lag: ± 0.03%F·S
Creep: ± 0.03%F·S / 30mn
Zero point output: ± 20f · s
Zero temperature coefficient: ± 0.03%F·S / 10 ° C
Sensitivity temperature coefficient: ± 0.03%F·S / 10 ° C
Operating temperature range: - 20 ° C + 80 °
Input resistance: 750 ± 20 Ω
Output resistance: 700 ± 59 Ω
Safety overload: 150%F·S
Insulation resistance: ≥ 5000m Ω (50VDC)
Voltage: 5V-15V
Size: 19.5*16.1*0.98 cm(7.68*6.34*0.39 inch)
Note:
Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.
